Introduction

When we assess a home, boat, van, or any other setup for an off-grid system, our process always begins with reviewing the load list in a consultation call. During our discussion, I send over a comprehensive sheet that outlines nearly every type of load they might consider adding to their system. There’s almost always something that gets missed, whether it’s a septic tank pump or the fan for a propane furnace. Often, people forget that while the furnace itself runs on propane, the fan still requires electricity to function.

If you haven’t yet read the article on gathering a load list, I encourage you to do so as it’s the first critical step. This process of load assessment is the foundation, and today’s topic is step two in designing your system.

When it comes to creating a reliable off-grid solar system, the battery bank is what holds it all together. While solar panels capture energy from the sun, it’s the batteries that store this energy, ensuring you have power even on cloudy days or through the night. Choosing the right battery capacity is critical, especially in off-grid setups where you need dependable energy storage to keep essential devices running. From calculating your daily energy use to planning for seasonal changes in sunlight, building a battery bank that meets your unique needs is the key to achieving true off-grid independence

Calculating Your Battery Capacity

Now that you’ve established your cabin’s daily energy consumption, let’s turn that number into practical storage requirements. Using your total daily watt-hours (Wh), you can estimate the battery capacity required by multiplying it by the number of days you’d like to cover without solar input. A common standard is to plan for a three-day autonomy period, ensuring that the system can handle extended cloudy spells without interruption.

For example:

  1. Daily Usage: If your cabin’s daily load comes to 786.5 Wh, you’ll multiply this by 3 for a three-day autonomy.
  2. Battery Capacity (in Watt-hours): 786.5 Wh × 3 = 2359.5 Wh

Choosing Your Battery Chemistry

While this method offers an approximate requirement, it’s just the beginning. You’ll need to consider factors such as battery depth of discharge (DoD), charging efficiency, and ambient temperatures. With lead-acid batteries, for instance, only about 50% of the rated capacity is usable, while lithium batteries often allow for deeper discharges. These considerations will refine your battery bank’s size for real-world conditions, creating a system that serves your needs year-round.

  • Efficiency and Depth of Discharge (DoD): LiFePO4 batteries typically support a deeper discharge (around 90%–100%) and have an efficiency rate of 95% or higher, allowing them to deliver more usable energy from their stored capacity. Lead-acid batteries, on the other hand, usually have a shallower depth of discharge (about 50%) and an efficiency rate closer to 80%–85%, which means they need to be charged more frequently and cannot store as much usable energy as lithium batteries. If they are flooded batteries they also require proper ventilation due to gassing and regular maintenance.
  • Charging Speed: Lithium batteries charge faster than lead-acid batteries due to their lower internal resistance and better tolerance for high charge rates. This can be a crucial advantage in off-grid systems, where faster charging from solar panels means less downtime and more efficient energy use, especially during shorter or cloudy days.

Assuming a 90% DoD for LiFePO4 batteries:

Required Battery Capacity = 2359.5 Wh so we divide that by 0.9 because of our approximate DoD of 90% which gives us 2621.67 Wh

Required Battery Capacity = 2621.67 Wh

For lead-acid batteries with a 50% DoD:

Required Battery Capacity = 2359.5 here we divide by 0.5 due to our 50% DoD which gives us 4719 Wh

Required Battery Capacity = 4719 Wh

These calculations indicate that, to achieve a 3-day autonomy:

  • LiFePO4 batteries would require a total capacity of approximately 2,621.67 Wh.
  • Lead-acid batteries would need around 4,720 Wh due to their lower DoD.

Converting to Amp-Hours

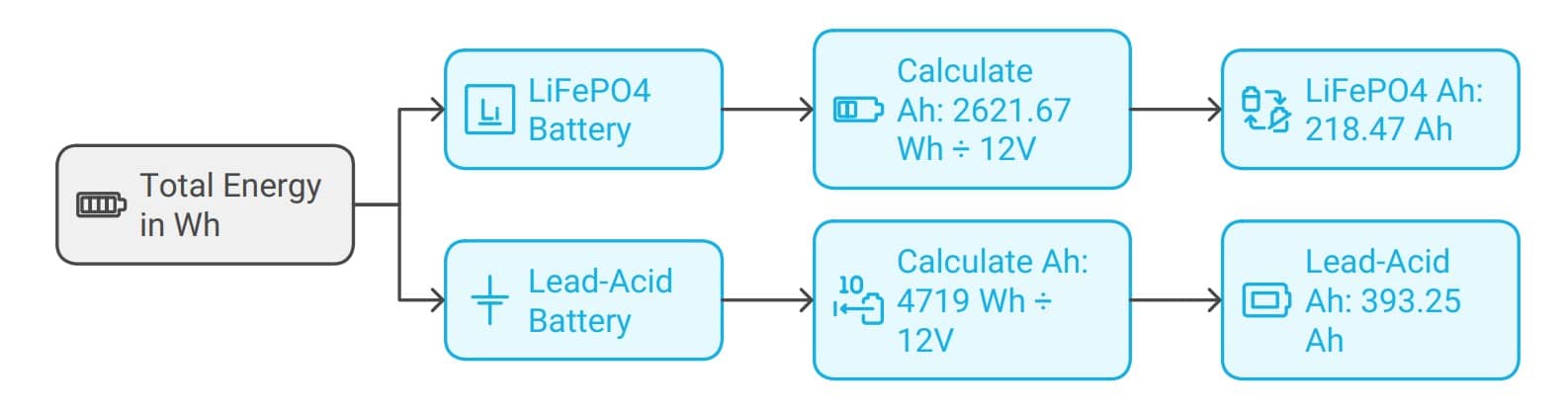

Since battery banks are often rated in amp-hours (Ah), converting your required watt-hours will help in choosing the right batteries. Since we are using a 12-volt system in our situation, divide the total Wh by the system voltage:

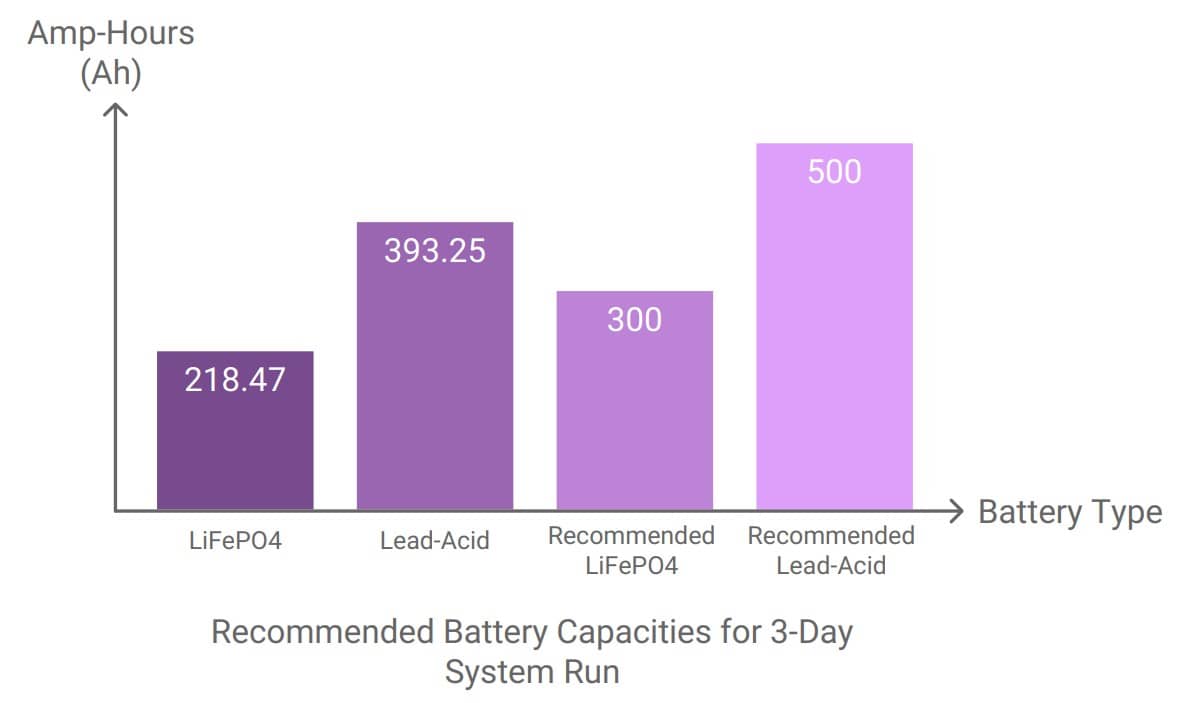

The amp-hour capacities we've calculated are sufficient to keep your system running for three days at 12 volts. However, it’s often beneficial to consider a slightly larger battery bank to account for efficiency losses, battery aging, and potential future increases in your energy demands. For these reasons, I recommend aiming for a 300Ah lithium battery or a 500Ah lead-acid battery as a more realistic solution.

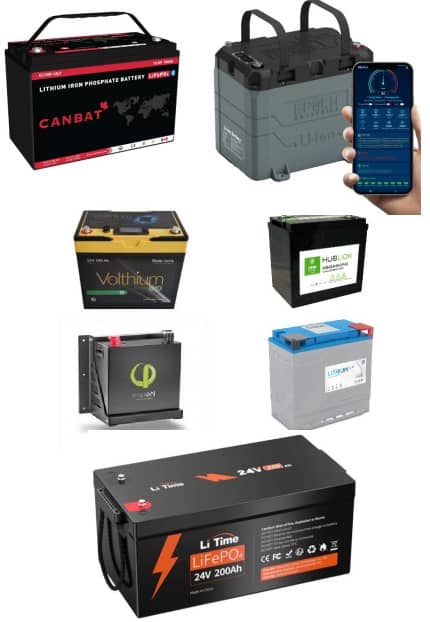

Lithium batteries generally offer far greater value over time. With their higher efficiency, longer lifespan, and ability to be deeply discharged without damage, lithium batteries make an excellent investment compared to traditional lead-acid options. While we still provide lead-acid batteries for those who request them, sales in recent years have been minimal. Initially, lead-carbon filled the gap, but with lithium prices becoming more affordable and demand consistently rising, every battery we’ve sold this year has been lithium.

Ultimately, the choice is up to you, but considering current pricing and performance benefits, lithium batteries are likely the best option for most solar applications.

Conclusion

Our goal is to empower you to design a safe, reliable off-grid system that meets electrical codes. We believe in your ability to do this, and we’re here to guide you one step at a time. Whether you’re aiming to install it yourself or simply want to understand the process to make confident purchasing decisions, we’ll ensure you know exactly what you’re buying and that it meets your standards. If you have questions, need help, or want to give us feedback, please reach out—we’re here to support you every step of the way. And remember, if you'd prefer not to handle the installation yourself, you'll have the confidence to collaborate with an expert for a secure and code-compliant setup.

Each solar project is unique, with specific variables that affect the overall design and installation. These include the brands and types of devices in the system, the distance between components, cable lengths, temperature fluctuations, energy gains and losses, and adherence to electrical codes. Each of these elements must be carefully calculated and adjusted as more questions are answered throughout the planning phase.

Adjustments during installation are also common. Device locations may need to shift to meet code requirements, and cable routes may change, resulting in longer or shorter spans than initially planned. These modifications highlight the importance of flexibility and careful consideration at each stage. Ultimately, each system design requires a customized approach to ensure safety, reliability, and optimal performance.

For individuals seeking consultation, education, or assistance in system designs related to off-grid solar applications, IOTG Solar stands ready to help. Our team is available to address questions, provide valuable insights, and offer support at every stage of the solar energy journey. Feel free to reach out to IOTG Solar anytime for expert assistance and comprehensive solutions tailored to your specific needs.
