Introduction
Over the years, I’ve worked on countless off-grid solar systems, some brand new, others installed a decade or more ago. And every now and then, I come across a system that was clearly installed by a particular individual whose work stands out. His style is unmistakable: clean layouts, thoughtful wire routing, and most importantly, proper protection in all the right places. When I see his work, I can almost guarantee that breakers and fuses were used exactly where they needed to be.
That kind of attention to detail is more than just good workmanship, it’s essential for safety and long-term performance. Because when it comes to off-grid solar systems, safety is just as important as power production. One of the most commonly overlooked, but absolutely vital, components of any system is overcurrent protection: the fuses and breakers that safeguard your wires, batteries, and expensive equipment from overloads and short circuits.
Whether you're powering a remote cabin, a tiny home, or a mobile setup, understanding where and why to use a breaker or a fuse can make the difference between a reliable system and one that could fail, or worse, cause damage.
Circuit Breakers
- Resettable: Can be manually reset after tripping.
- Easier to use in remote locations—no replacement needed.
- Commonly used in:
- Charge controller output
- Inverter input/output
- AC distribution panels
- Battery disconnects
- Combiner boxes (especially with DC-rated breakers)
Use DC-rated breakers for DC circuits, standard AC breakers are not safe for high-voltage DC. ( Check out my article on the difference between AC and DC breakers HERE. )
Fuses
- One-time use: Must be replaced after they blow.
- Often cheaper and used for specific protection, especially in battery banks and inline protection.
- Common types:
- ANL or Class T fuses (high-current battery protection)
- MC4 inline fuses for PV strings
- Must be sized carefully and installed in fuse holders rated for the voltage and current.

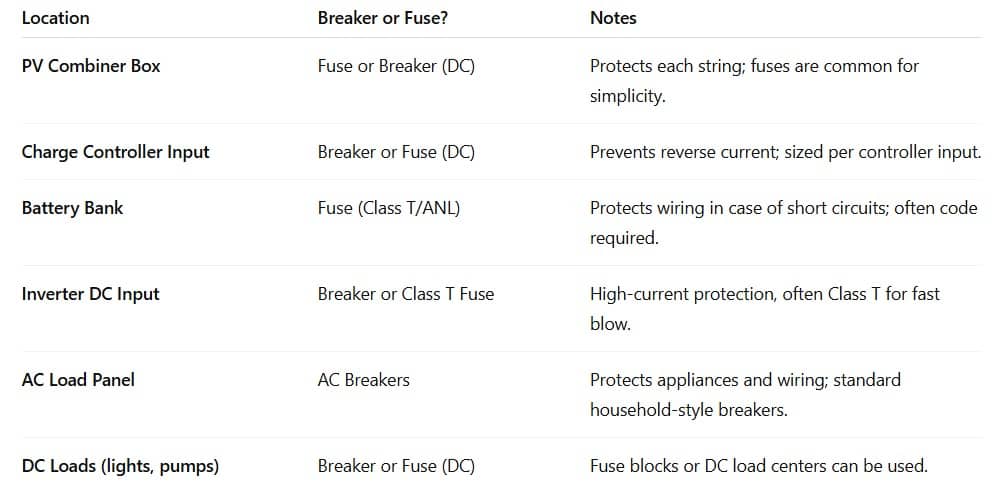

Where to Use Breakers or Fuses
Best Practices
- Always size breakers/fuses for the wire they protect, not just the device.
- Use disconnects with breakers when needed for safe maintenance.
- Install components in weatherproof enclosures if outdoors.
- Follow NEC (National Electrical Code) CSE ( Canadian Electrical Code) or your local electrical codes.
Example: Small Cabin System
Let’s say you have:
- 2 x 500W solar panels
- 40A MPPT charge controller
- 24V 200Ah lithium battery bank
- 24V inverter (1,500W)
Here’s a basic protection layout:
- PV Combiner: 20A Din Rail or Panel Breakers Depending on which combiner box you are using for each panel unless connecting in series then use one 40A Breaker.
- Charge Controller Input: 40A DC breaker
- Battery Protection: 150A Class T fuse
- Inverter DC Input: 150A breaker or fuse
- AC Panel: Standard 15A–20A breakers per circuit. Make sure you use AC breakers in this case.
If you're designing or installing your own off-grid system, having the right fuses and breakers in place is critical for safety and long-term reliability.
Conclusion
Choosing the right breaker or fuse isn’t just about ticking a box, it’s about protecting your investment, your equipment, and the people who rely on your system every day. Whether you’re dealing with high-current battery banks, inverter inputs, or sensitive DC loads, proper overcurrent protection ensures your system can handle real-world conditions safely and reliably.
When I come across those older systems that were clearly built with care, where every fuse and breaker was thoughtfully placed, I’m reminded of the long-term value of doing things right the first time. Good design, clear planning, and proper protection aren’t optional in off-grid systems, they’re essential.
So whether you're designing a new system, upgrading an old one, or just learning the ropes, remember this: Breakers and fuses are the quiet heroes of your solar setup. Treat them with the importance they deserve, and your system will reward you with years of dependable service. After all it is code to do so.
If you're not sure what protection your system needs, get help from someone who knows. Because in solar, as in life, safety always comes first.
And if you need help troubleshooting this, or anything else related to your off-grid solar setup, don’t hesitate to reach out to us. We’re here to help.
