Introduction
When installing modern solar inverters such as the Hybrids, we often refer to them as “48 volt systems” but is that voltage fixed? Can these systems safely run at a higher voltage?
In the world of batteries, we’re used to seeing the familiar 12V, 24V, and 48V labels. But if you’ve been shopping for lithium batteries lately, you’ve probably noticed that many “48V” options are actually labeled as 51.2V. What’s going on here?
It’s a bit like solar panels: we still call them “12V panels,” even though a 100W panel has an open-circuit voltage around 22V. And today’s “24V” panels, like the 600W+ models, can have open-circuit voltages of 50V or more, yet we continue to categorize them the same way.
That’s a story for another day.
Today, let’s talk about lithium batteries, specifically, the difference between 48V and 51.2V batteries, why both exist, and what that means for your solar or other battery powered equipment.
Internal Configuration
48V Batteries: These batteries typically consist of 15 lithium iron phosphate (LiFePO₄) cells connected in series. Each cell has a nominal voltage of 3.2V, resulting in a total nominal voltage of 48V (3.2V × 15). When fully charged, a 48V (15S) lithium battery reaches approximately 54.75V. This configuration has been widely used as a direct replacement for older lead-acid battery systems that operated around similar voltage ranges.
51.2V Batteries: These are made up of 16 LiFePO₄ cells in series, giving a nominal voltage of 51.2V (3.2V × 16). At full charge, a 51.2V (16S) lithium battery reaches 58.4V (3.65V × 16). The extra cell in this configuration not only raises the nominal and fully charged voltage but also provides higher total energy capacity and better power output efficiency, particularly in high-demand applications.
Performance Differences

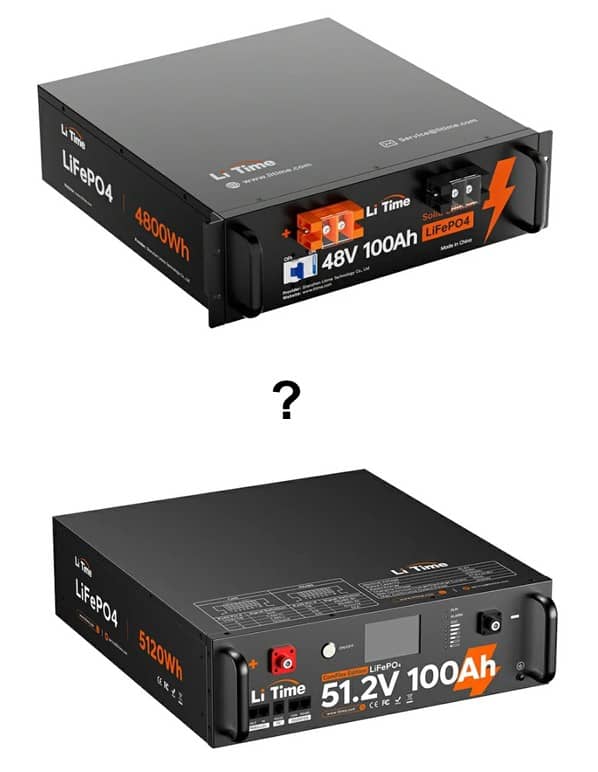

- Energy Output: A 51.2V battery can deliver more energy than a 48V battery of the same capacity. For instance, a 100Ah 48V battery provides 4.8kWh, whereas a 100Ah 51.2V battery offers 5.12kWh.
- Efficiency: Higher voltage systems like 51.2V operate with lower current for the same power output, reducing energy losses due to resistance and improving overall efficiency.
- Charging Speed: 51.2V batteries often support faster charging times compared to 48V counterparts, minimizing downtime.
- Lifespan: LiFePO₄ batteries, commonly used in 51.2V configurations, typically offer longer lifespans (up to 10 years or more) compared to traditional lead-acid 48V batteries.
Application Scenarios
48V Batteries
These are commonly employed in applications where compatibility with existing systems is crucial or where safety and simplicity are prioritized. Examples include:
- Older Golf Carts: Many traditional golf carts were designed around 48V lead-acid systems. Upgrading to 48V lithium batteries boosts performance and efficiency without needing major controller upgrades.
- Off-Grid Solar Setups: In many off-grid installations, 48V systems strike a balance between wiring efficiency, inverter compatibility, and safety, making them a popular choice.
- Medical Equipment: Certain portable medical devices, such as ventilators and infusion pumps, use 48V lithium batteries to provide stable, compact, and reliable power, especially in mobile or emergency scenarios.
- Telecommunication Systems: 48V DC is a global standard in telecom infrastructure, powering backup systems, cell towers, and data relay points with minimal energy loss and robust safety.
51.2V Batteries
While often grouped under the "48V" category, these batteries use 16 LiFePO₄ cells (instead of 15) and provide slightly higher voltage, which can mean more power, efficiency, and longer runtime. They are ideal in performance-demanding or newer systems:
- Advanced Solar Energy Storage: These batteries are favored in modern solar installations using hybrid or off-grid inverters (e.g., Victron, Luxpower, Sol-Ark), offering higher energy density and smoother charging/discharging profiles.
- High-Performance Golf Carts: Some upgraded or newer golf carts are optimized for 51.2V lithium packs to achieve higher torque, speed, and range, especially on hilly or extended courses.
- Electric Scooters & Light EVs: While full-sized EVs run on much higher voltages (300V–800V), many low-speed electric vehicles (LSVs), like e-scooters, e-bikes, mobility scooters, and utility carts, operate on 48–60V systems, making 51.2V batteries ideal for these platforms.
- Industrial Automation: Robotics, automated guided vehicles (AGVs), and factory equipment often rely on 48–60V lithium packs. The stable output of 51.2V improves system responsiveness and runtime.
- Medical Equipment (High-Demand): Diagnostic carts, surgical tools, and battery-powered imaging devices use 51.2V batteries where higher capacity and rapid recharge capability are crucial.
Compatibility Considerations
While 51.2V batteries offer enhanced performance, it's essential to ensure that the existing system (e.g., motor controllers, inverters, chargers) can accommodate the higher voltage. Some systems designed specifically for 48V may require modifications or replacements to function optimally with 51.2V batteries.

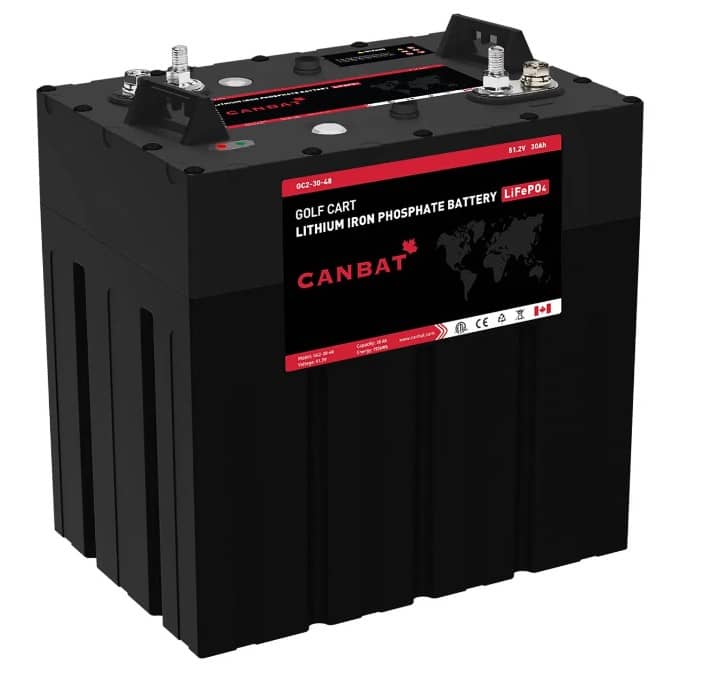

Adding a 51.2V Battery to a 2000 Electric Golf Cart
Your 2000 cart is likely designed for a 48V nominal battery, which typically means 48V lead-acid or maybe a 15-cell (3.2V x 15) lithium retrofit, giving 48.0V nominal and ~54.75V max when fully charged.
A 51.2V lithium battery (16S) charges up to 58.4V (3.65V x 16) at 100% state of charge.
Risk Assessment:
- Motor/controller tolerance: Most 48V golf cart controllers can handle up to ~60V max (some even more), but not all.
- What could go wrong?
- You could burn out the motor controller if it can't tolerate 58.4V.
- Or you may trip low-voltage protection if the controller sees the voltage as “too high.”
Adding a 51.2V Battery to a Victron Quattro (48V model)
Victron designs its 48V Quattro and MultiPlus inverters to work with lithium batteries, including 16-cell (51.2V nominal) systems.
Victron Specs:
- Acceptable battery voltage range: 38V – 66V (model-dependent, but generally accurate for the 48V Quattro).
- Designed to work with 16S LiFePO₄ banks, and integrates well via VE.Bus BMS or Cerbo GX.
No, a 51.2V battery will not hurt a Victron Quattro, in fact, this is what Victron expects when people use lithium.
- Victron even partners with brands like Pylontech and BYD, which use 51.2V (16S) batteries.

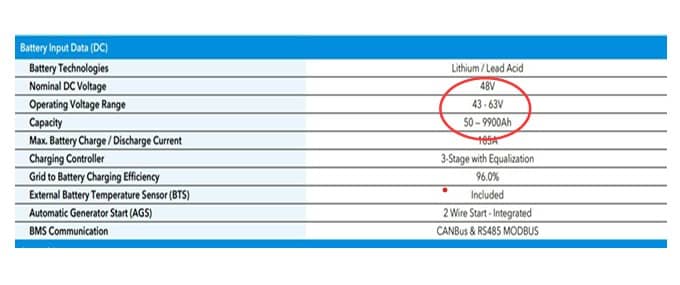

Before buying or connecting 51.2V lithium batteries, always check that your equipment is rated to handle the slightly higher voltage. Verify compatibility with your inverter, charge controller, or motor controller, especially if the system was originally designed for 48V. Review the manufacturer's voltage range specifications (often 44–60V for 48V-class devices) to avoid damage, and make sure charging parameters like bulk/float voltage match the battery’s specs.
Conclusion
While 48V and 51.2V lithium batteries are often grouped together, understanding their differences can help you make smarter choices when upgrading or designing a system. The extra cell in a 51.2V battery provides more power, efficiency, and runtime, making it a great fit for high-performance applications like modern inverters, upgraded golf carts, industrial equipment, and electric mobility devices. However, system compatibility is key. Always verify voltage tolerances and charging parameters before connecting a 51.2V battery to existing equipment. Whether you're building a solar power system, upgrading a golf cart, or powering specialized devices, choosing the right battery voltage ensures better performance, safety, and long-term reliability.
